Ultra-thin aluminum

超薄型铝壳电阻器
  • 超薄型铝壳电阻器
  • 超薄型铝壳电阻器
超薄型铝壳电阻器

1.Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment

铝壳包封,散热性能好,适合散热板安装,可长期在恶劣环境下使用。

2.Small size, high power load.

体积小,功率负荷大。

3.High insulating capacity, encapsulation by non-flame inorganic material good performance in vibration。

绝缘性高,采用阻燃无机材料一体化封装,抗震性好。

4.Multi connection form will be easily to fix

多种接线方式,易于安装。

5.Widely used in Power supply, Transducer, Elevator, Arena audio and high requirement equipment Industry.

广泛用于电源、变频器、电梯、舞台音响及高端设备行业。

6.Resistance tolerance

精度范围 :±1%,±2%,±5%,±10%.

Service hotline:
0755-27606841
Product details


型号TYPE Resistance range
阻值范围

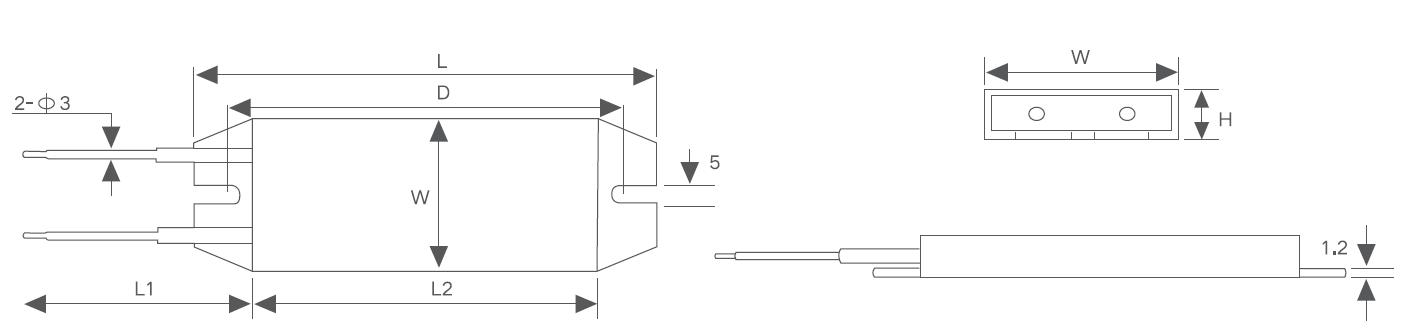

外形尺寸DIMENSIONS(mm) Max. insulation voltage
最高绝缘电压
L±0.5 L2±0.5 D±0.5 W±0.5 H±0.5
RXCB80W 1R-10K 80 54.2 60.5 45 8.4 750V
RXCB100W 100 74.2 80.5 45 8.4 900V
RXCB120W 120 94.2 100.5 45 8.4 1000V
检验项目 试验方法 性能要求
温度系数 在常温及常温+100℃时分别测量电阻值并计算 每度的阻值变化. ±250ppm/℃
短期过载 5倍额定功率5秒钟 △R≤±(2.0%R+0.05Ω)
绝缘电压 按表列所规定电压 △R≤±(0.5%R+0.05Ω)
温度 250℃,2小时 △R≤±(3%R+0.05Ω)
高频率振动 频率10~200HZ,峰值20g,2个方向,时间为6个小时 △R≤±(3%R+0.05Ω)
