阻值低，最低阻值可以达到0.005Ω。
2.Operating ambient temperature
使用环境温度: -55°C~+125°C

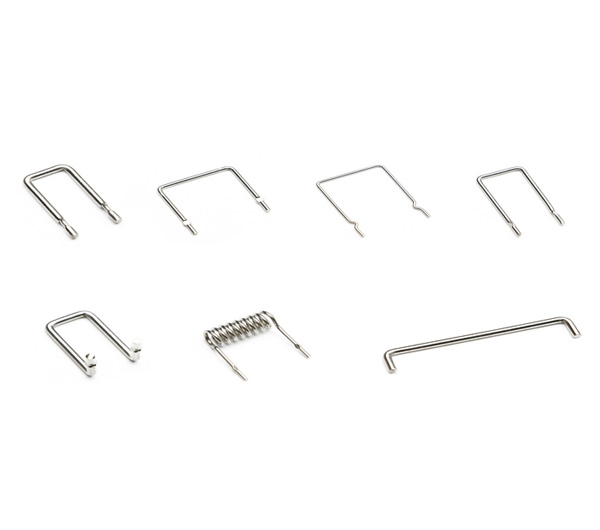

3.Can be according to customers requirement to forming the special type. 可根据客户要求制作特殊成型。
4.Resistance tolerance 阻值误差: ±1%.±5%±10%
Dimensions 尺寸(mm)
| P±0.5 | Hmax | Ф | L | B |
| 5～50 | 30 | 见下表 | 3±0.5 | B-L≥0.5 |
|
Line diameter 线径Ф（mm） |
Maximum rated current 最大额定电流(A) |
Resistance range 阻值范围(mΩ) |
M-resistance 米阻（Ω/m） |
Resistance Tolerance 阻值精度 |
TCR (PPM/℃) 温度系数 (PPM/℃) |
| 0.4±0.01 | 2 | 70-200 | 3.82 | J:±5% | Cu-Mn：±50PPM |
| 0.5±0.01 | 2.5 | 50-150 | 2.44 | ||
| 0.6±0.015 | 3.0 | 50-100 | 1.70 | ||
| 0.7±0.015 | 4.0 | 20-70 | 1.25 | ||
| 0.8±0.015 | 4.5 | 10-50 | 0.95 | ||
| 0.9±0.015 | 5.0 | 10-40 | 0.75 | ||
| 1.0±0.015 | 5.5 | 8-30 | 0.61 | ||
| 1.1±0.02 | 6.0 | 8-20 | 0.51 | ||
| 1.2±0.02 | 7.0 | 5-20 | 0.42 | ||
| 1.3±0.02 | 7.5 | 5-20 | 0.36 | ||
| 1.4±0.02 | 8.0 | 5-20 | 0.31 | ||
| 1.5±0.02 | 9.0 | 5-20 | 0.27 | ||
| 1.6±0.02 | 9.5 | 2-20 | 0.24 | ||
| 1.8±0.025 | 11 | 2-10 | 0.19 | ||
| 2.0±0.025 | 12 | 2-10 | 0.15 | ||
| 2.3±0.03 | 14 | 2-5 | 0.11 | ||
| 2.5±0.03 | 16 | 2-5 | 0.098 | ||
| 2.6±0.03 | 18 | 1-5 | 0.090 | ||
| 2.7±0.03 | 19 | 1-5 | 0.084 | ||
| 2.8±0.03 | 20 | 1-5 | 0.078 | ||
| 2.9±0.03 | 21 | 1-5 | 0.073 | ||
| 3.0±0.03 | 22 | 1-5 | 0.068 |
