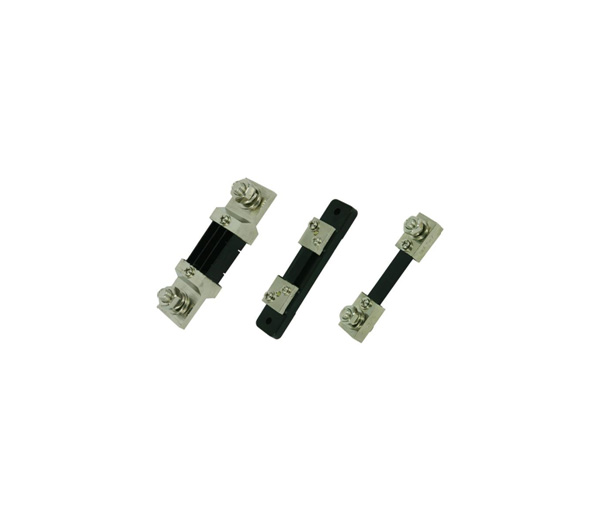

FL-13 Fixed Type Shunt Resistors

Accuracy class:
0.5 for 5 ~ 40000A:1 for 5000 ~ 6000A
2~4000A :
Ambient conditions:
Temperature:
relative humidity:≤95% 35°C.
Capacity to withstand mechanical force:
It is capable of with standing the transport bumping at acceleration of 70m/s² and shock frequency of 80~120 time/min for 5 hours.
Over rating capacity:
120% of rated current for 2 hours.
Voltage drop:50mV, 60mV, 75 mV, 100mV.
Given out heat when over loaded:
Not be more than 80°C after temperature rise get steady; Not be more than 80°C at rated current of over 50A..

Service hotline：
0755-27606841

Product details


Technical specifications 技术说明
Accuracy class: 准确度等级： 0.5 for 5 ~ 40000A:1 for 5000 ~ 6000A 2~4000A : 0.5级； 5000~6000A : 1级 Ambient conditions: 环境条件 Temperature: 温度 -40 ~ +60°C; relative humidity: 相对湿度: ≤95% 35°C. Capacity to withstand mechanical force: 耐机械性能 It is capable of with standing the transport bumping at acceleration of 70m/s² and shock frequency of 80~120 time/min for 5 hours. 能承受加速度为70m/s²及冲击频率每分80~120次6小时的运输颠震。 Over rating capacity 过负载性能:120% of rated current for 2 hours. 120%额定电流值，2小时。 Voltage drop: 电压降： 50mV, 60mV, 75 mV, 100mV. Given out heat when over loaded: 负载下发热： Not be more than 80°C after temperature rise get steady; Not be more than 80°C at rated current of over 50A.. 温升变化趋于稳定后，额定电压50A以下不超过80°C，额定电流50A以上不超过120°C
Type 型号	Specification 规格	Dimensions尺寸(mm)			Install size安装尺寸(mm)
Type 型号	Specification 规格	L	B	H	C	C1	Install nail
FL13-75mV	30A	100	20	21	85		M5
FL13-75mV	50A	1301	14	30	85		M8
FL13-75mV	75A	130	14	30	85		M8
FL13a-75mV	100A	130	14	30	85		M8
FL13a-75mV	200A	130	24	30	85		M10
FL13a-75mV	300A	130	30	30	100		M10
FL13a-75mV	400A	130	42	30	100		M10
FL13a-75mV	500A	130	52	30	100		M10
FL13a-75mV	600A	130	60	30	100	50	M10
FL13a-75mV	750A	130	77	30	100	50	M10
FL13a-75mV	1000A	130	95	30	100		M10
