Aluminum shell resistor

Where are you now:Home / Products / Aluminum shell resistor

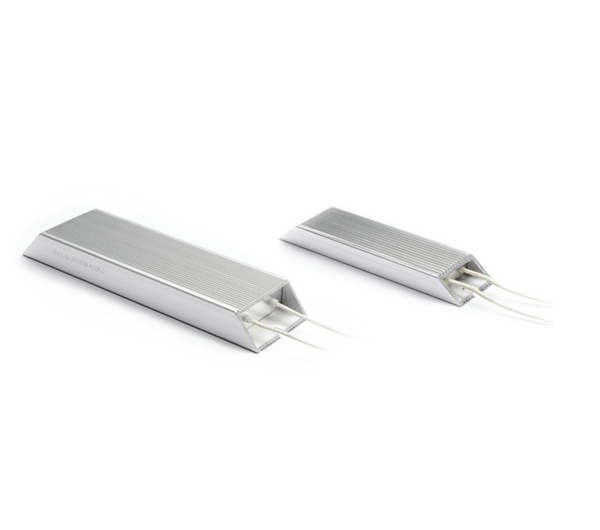

Trapezium Aluminum Housed Wirewound Resistor
  • Trapezium Aluminum Housed Wirewound Resistor
  • Trapezium Aluminum Housed Wirewound Resistor
Trapezium Aluminum Housed Wirewound Resistor

1.Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment

铝壳包封,散热性能好,适合散热板安装,可长期在恶劣环境下使用。

2.Small size, high power load.

体积小,功率负荷大。

3.High insulating capacity, encapsulation by non-flame inorganic material good performance in vibration。

绝缘性高,采用阻燃无机材料一体化封装,抗震性好。

4.Multi connection form will be easily to fix

多种接线方式,易于安装。

5.Widely used in Power supply, Transducer, Elevator, Arena audio and high requirement equipment Industry.

广泛用于电源、变频器、电梯、舞台音响及高端设备行业。

6.Resistance tolerance

精度范围 :±1%,±2%,±5%,±10%.

Service hotline:
0755-27606841
Product details



Type
型号
Power
功率
            Resistance range
阻值范围

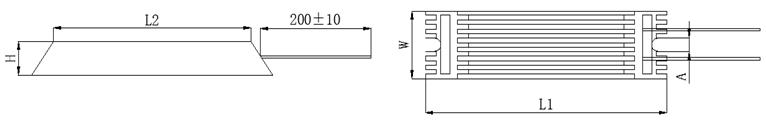

Dimensions
尺寸(mm)
Max. insulation voltage
最高绝缘电压
L±2 M±2 W±1 H±1 D±0.5
RXLG40 40W 0R5-2K2 95 65 40 20 5 450V
RXLG60 60W 0R5-4K7 100 72 600V
RXLG80 80W 1R-6K 110 80 750V
RXLG100 100W 1R5-8K 115 87 900V
RXLG120 120W 2R-10K 165 135 1000V
RXLG150 150W 2R-12K 185 155 1300V
RXLG200 200W 3R-15K 215 85 1450V
RXLG100 100W 1R5-8K 100 64 60 30 5 900V
RXLG200 200W 3R-15K 165 125 1450V
RXLG300 300W 3R-18K 215 175 2200V
RXLG400 400W 3R-20K 265 225 2300V
RXLG500 500W 3R-25K 285 245 2300V
RXLG600 600W 3R-25K 300 260 2400V
RXLG800 800W 3R-25K 330 288 2550V
RXLG1000 1000W 3R-30K 385 340 2850V
RXLG800 800W 3R-25K 210 173 50 107 5 2550V
RXLG1000 1000W 3R-30K 300 262 2850V
RXLG1500 1500W 3R-35K 400 362 3000V
RXLG2000 2000W 3R-35K 450 412 3000V
RXLG2500 2500W 3R-35K 485 447 3000V
RXLG3000 3000W 3R-35K 550 510 3500V
RXLG4000 4000W 3R-35K 650 610 3500V
RXLG5000 5000W 3R-35K 750 710 3500V
